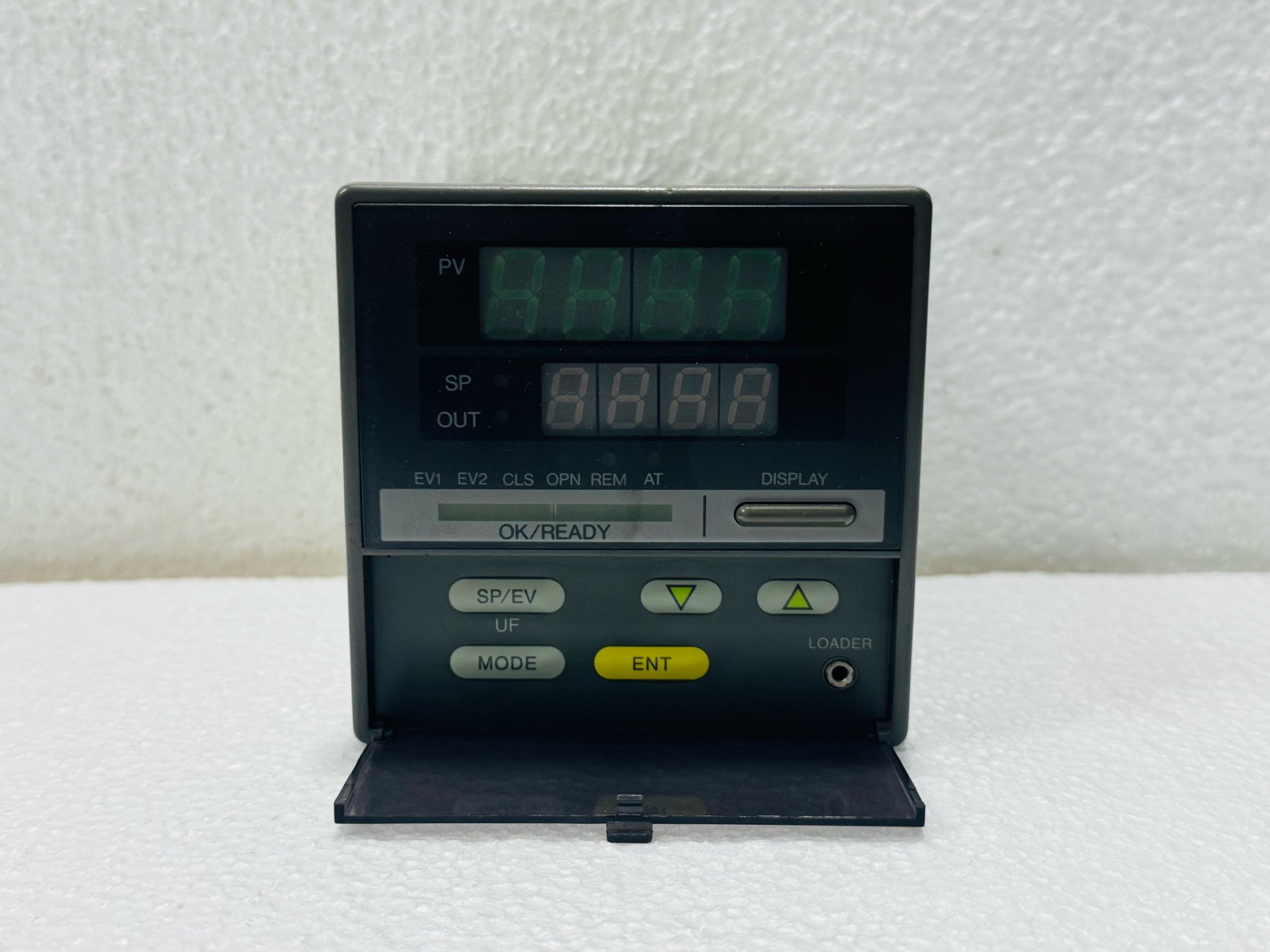

YAMATAKE SDC 31 TEMPERATURE CONTROLLER

Description

The Yamatake SDC31 is a compact, high-performance digital indicating controller from the DigitroniK series, designed for precise temperature and process control in industrial applications.

🔧 Key Features

• Input Types: Supports multi-range inputs, including thermocouples, RTDs (e.g., Pt100), DC voltage, and DC current, selectable via the keypad.

• Control Methods: Offers standard PID control and advanced neural/fuzzy PID control for improved process diagnostics and reduced overshoot.

• Outputs: Provides various output options, such as relay output, voltage output, current output (4–20 mA), and position proportional PID control.

• Display: Features a 4-digit, 7-segment LED display for clear visualization of process values and setpoints.

• Sampling Cycle: Fast 0.2-second sampling cycle for responsive control.

• Accuracy: High accuracy of ±0.2%FS ±1 digit for display (except for thermocouple B range between 0 and 260°C).

• Setpoint Groups: Supports up to 8 setpoint groups (SP1–SP8), allowing for flexible control strategies.

• Data Storage: Utilizes non-volatile EPROM for reliable data retention.

• Power Supply: Operates on 100–240V AC, 50/60Hz, with a maximum power consumption of 18VA.

• Operating Conditions: Ambient temperature range of 0 to 50°C and humidity range of 10 to 90%RH (non-condensing).
