Description

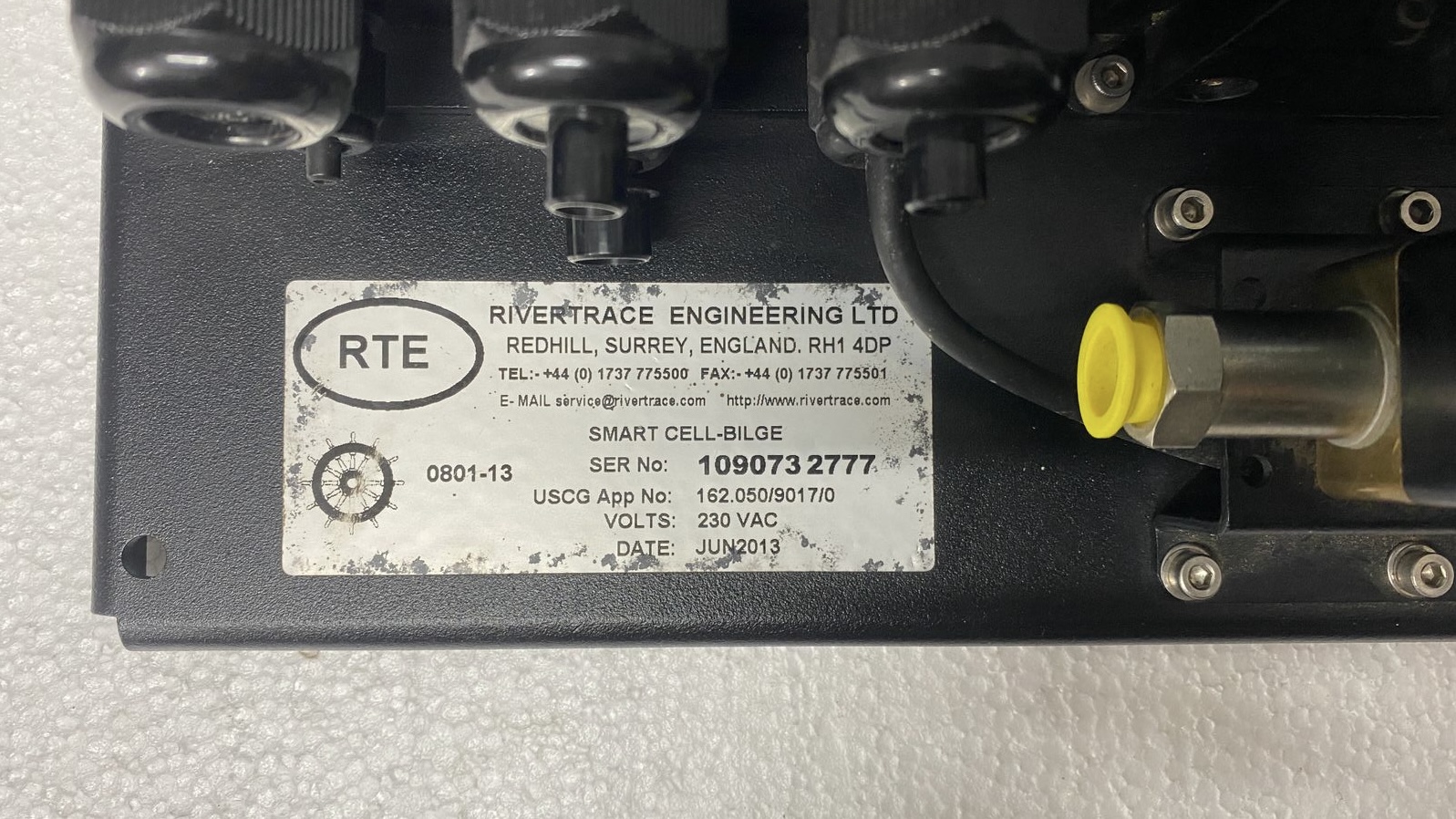

The SMART BILGE – SMART CELL system is manufactured by Rivertrace and serves as an oil content monitor for ship bilge water, enabling real-time analysis and compliance with international maritime regulations such as IMO MEPC.107(49)
🧮 System Overview

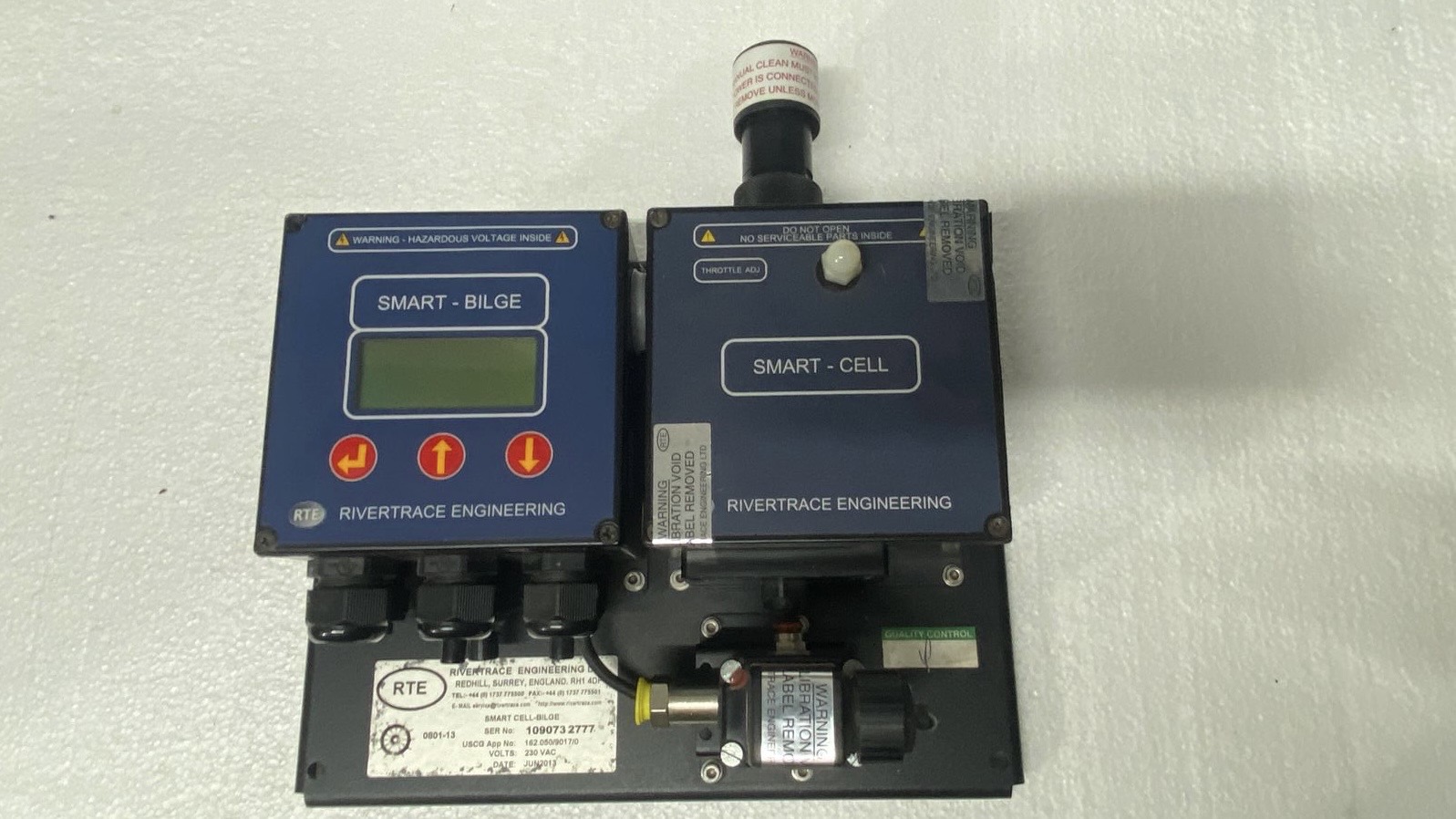

Core Components
-

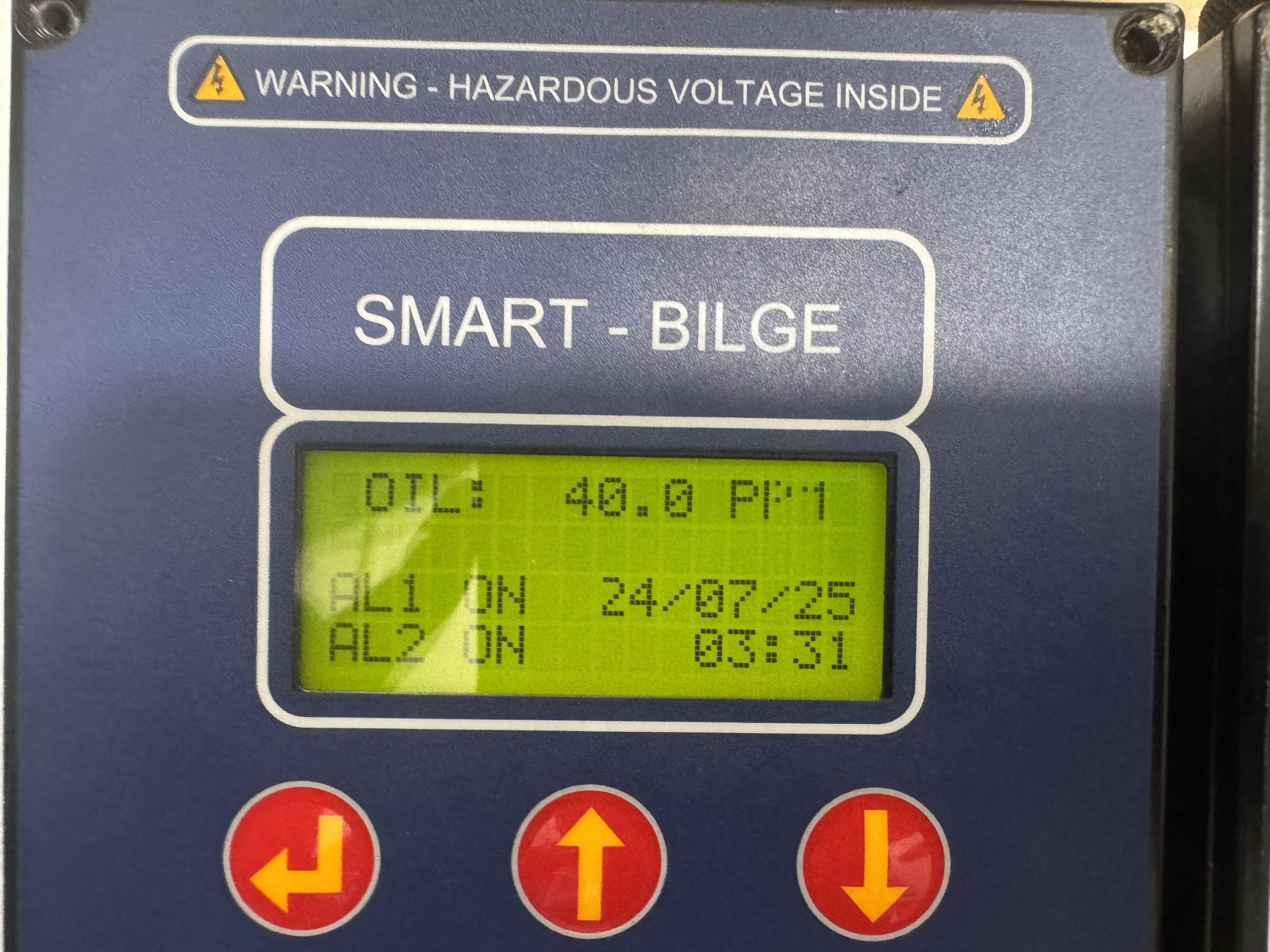

SMART BILGE Module: Controls the system, houses LCD display, alarm relays, data storage, calibration reminders, and user interface.
-

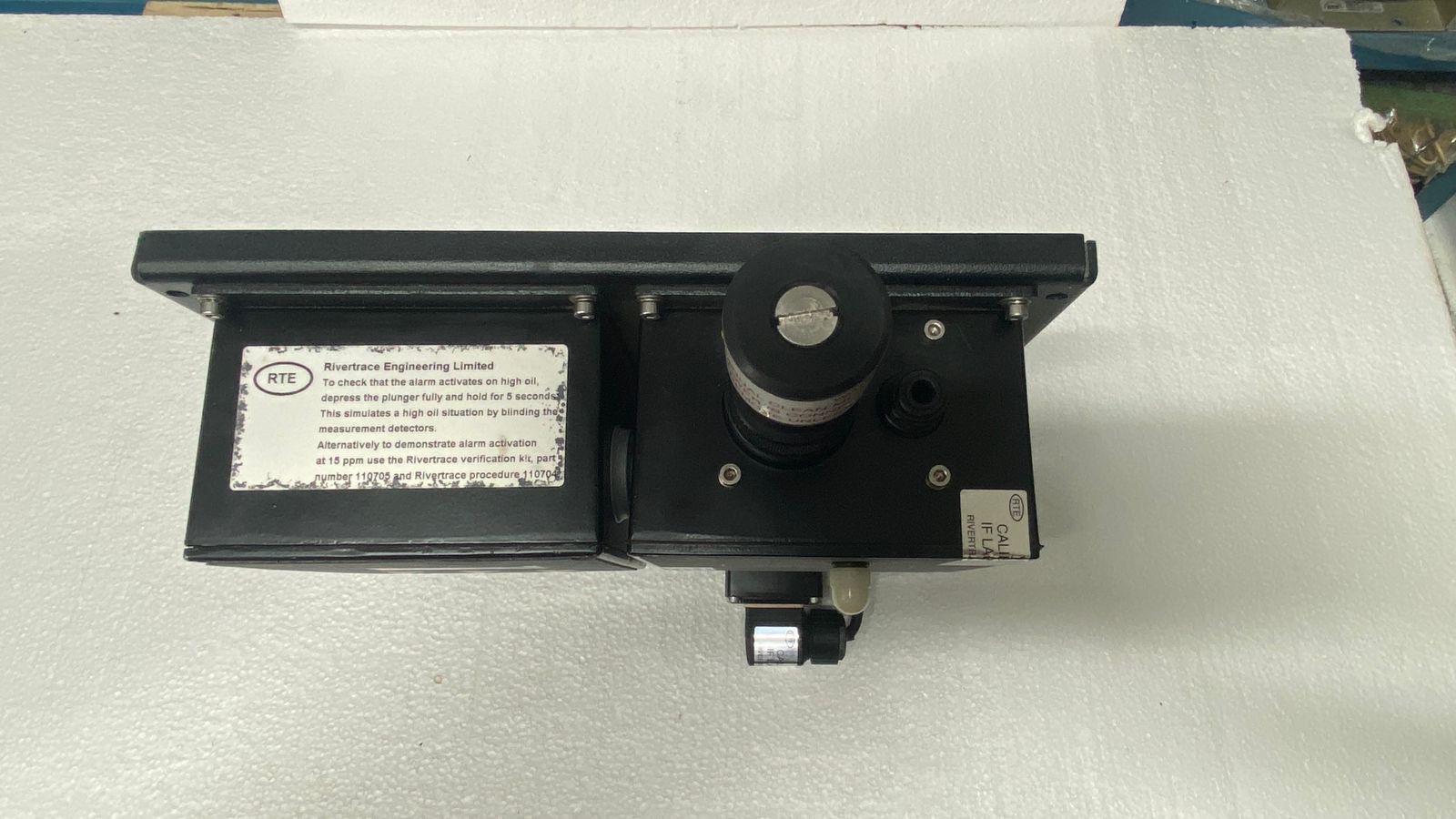

SMART CELL (Measuring Cell): Uses Detector Array Technology to optically analyze three oil types—heavy fuel oil (HFO), diesel, and emulsions—simultaneously, without recalibration
Why It Stands Out
-
Compliant with MEPC.107(49) regulation, ensuring maximum oil content in discharge does not exceed 15 ppm
-
High accuracy: ± 5ppm (oil + solids) up to 30 ppm; quick response (< 5 seconds)
-
Automatically logs IMO-required data and allows retrieval via LCD, RS-232, or USB
⚙️ Optional Features & Configurations
-
5 ppm Version: For more stringent standards such as Clean Design compliance
-
Flow Switch: Ensures actual bilge water flow through the cell; automatically shuts discharge valve if flow drops
-
Autoclean Mechanism: Pneumatically keeps the measuring cell clean to avoid fouling, reducing maintenance needs
-
Explosion-Proof (Exd) Enclosure: Suitable for hazardous zones (Zone 1 & Zone 2)
📊 Technical Summary
| Specification | Details |
|---|---|
| Oil Types Detected | HFO, Diesel, Emulsions simultaneously |
| Measurement Range | 0–40 ppm |
| Accuracy | ±5 ppm (oil + solids) up to 30 ppm |
| Response Time | < 5 seconds |
| Alarm Setpoints | Two adjustable (1–15 ppm) |
| Outputs | 4–20 mA or 0–20 mA analog output |
| Supply Voltage | 115/230 VAC (50–60 Hz); optional 12V/24V |
| Protection | IP65 enclosure |
| Approvals | MEPC.107(49); DNV-GL, USCG, CCS, ClassNK, etc. |
