Kongsberg RDo-16 Remote Digital Output Module Rev. F

Description

Overview & Specs

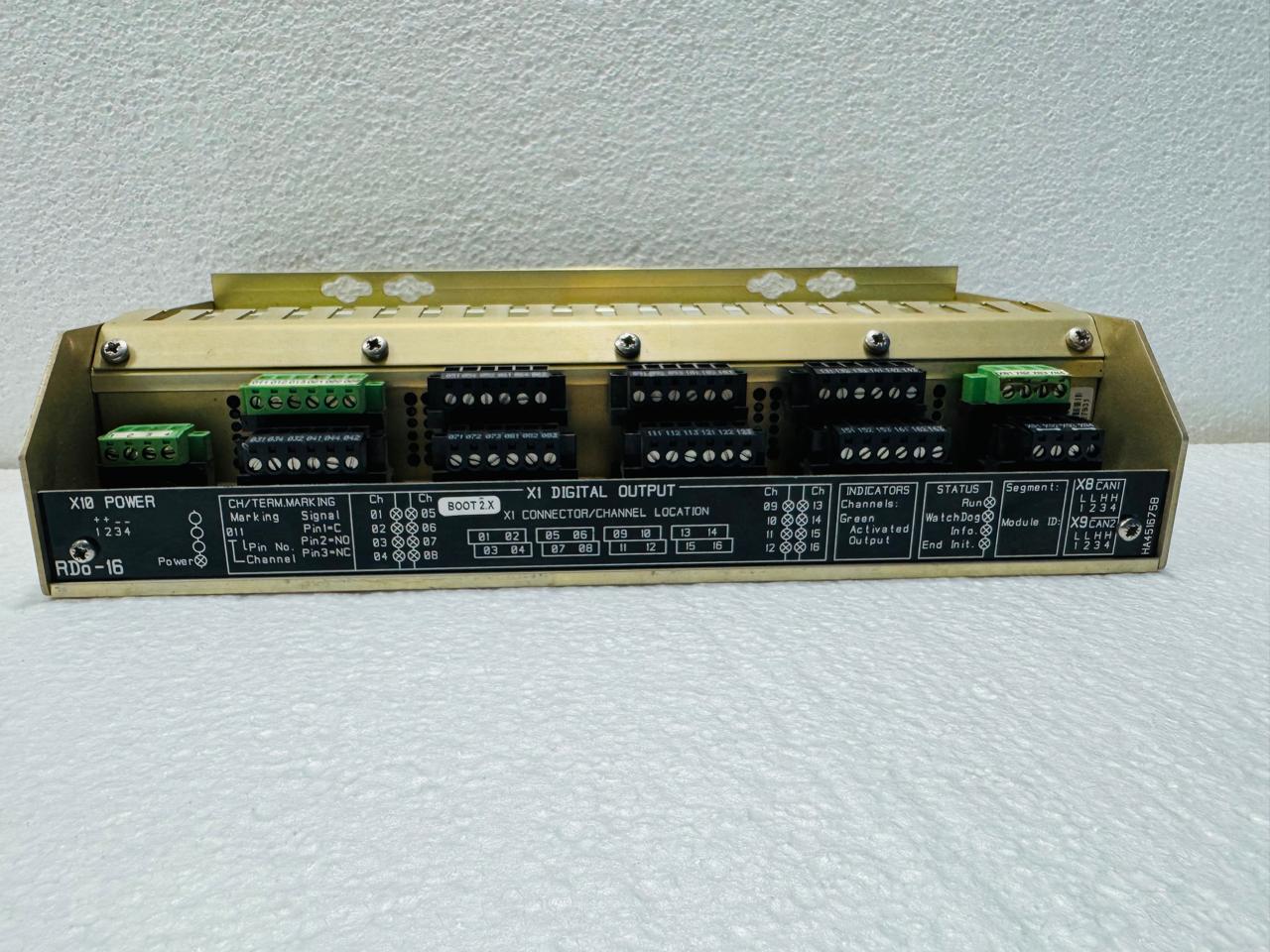

Digital Output Module (RDo‑16 Rev F)

• Designed for marine automation and built under Kongsberg Maritime’s R‑series modules. Utilizes CAN/Open communication.

• Offers 16 digital relay output channels with LED status indicators. Kongsberg+1Scribd+1

Electrical & Environmental Specs

• Supply voltage: 18–32 VDC, nominal 24 VDC

• Power consumption: ~4 W plus ~0.5 W per active channel

• Max output per channel: 3 A (resistive), up to 230 VAC or 32 VDC; supports inductive loads (cos φ ≥ 0.5)

• Operating temperature: –15 °C to +70 °C; storage –25 °C to +70 °C

• Humidity: up to 96% non‑condensing; Vibration: 4 g; IP Rating: IP20

• Approvals: DNV, ABS, LRS, GL, RINA, NK, CCS, KR, IACS E10, IEC 60945 Kongsberg+1Kongsberg+1

Interface & Control

• Two isolated CAN ports for redundancy; CAN Open 4.0 high‑speed fieldbus; integrated self‑test and watchdog features. All parameters are stored internally; remote configuration is supported. Kongsberg

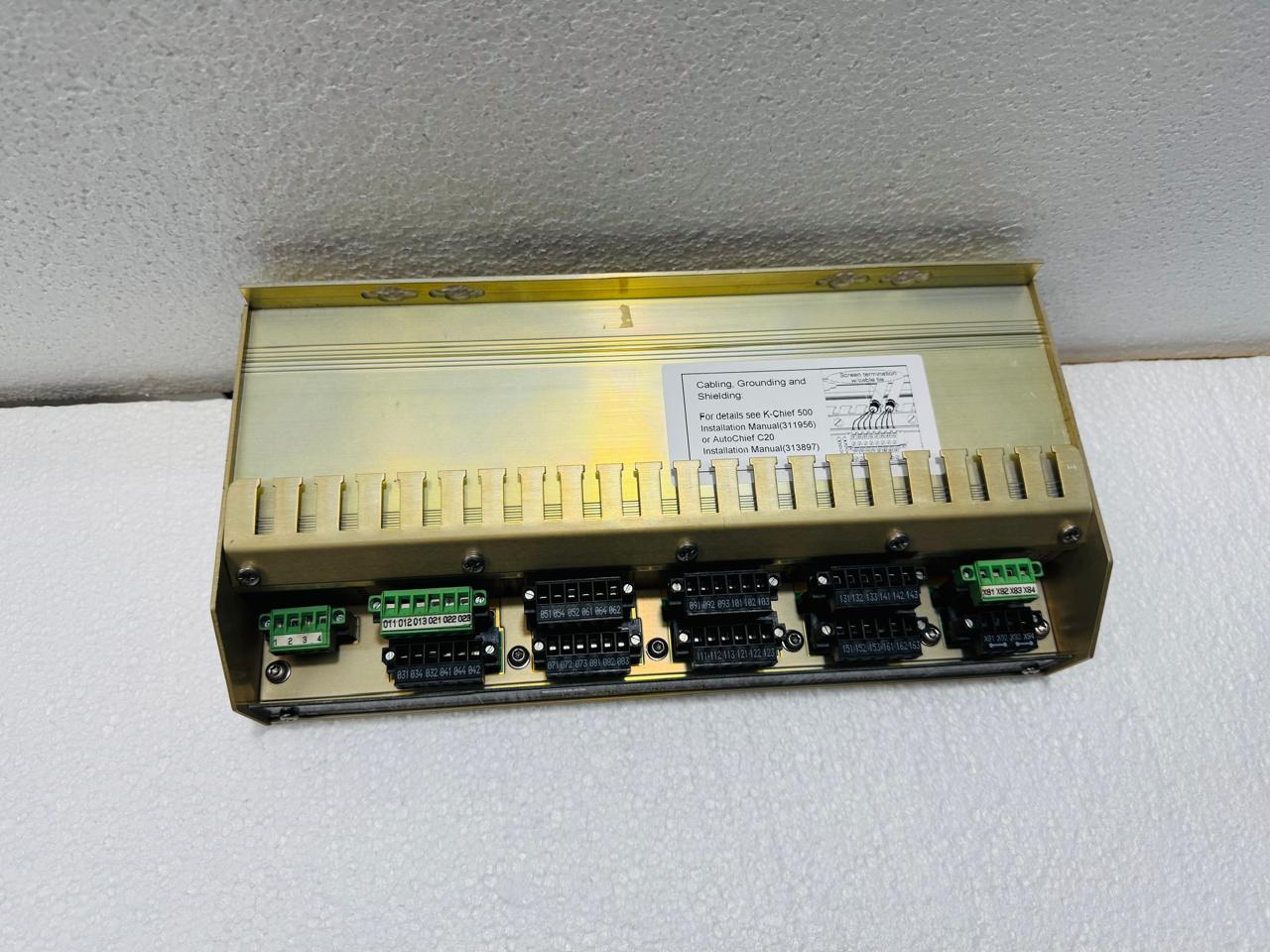

Mechanical Details

• Approximately 1.6 kg; mounts with 4× M5 screws; terminations via plugable screw terminals (2.5 mm²): separate connectors for power, CAN bus, and I/O. No internal serviceable parts. Kongsberg

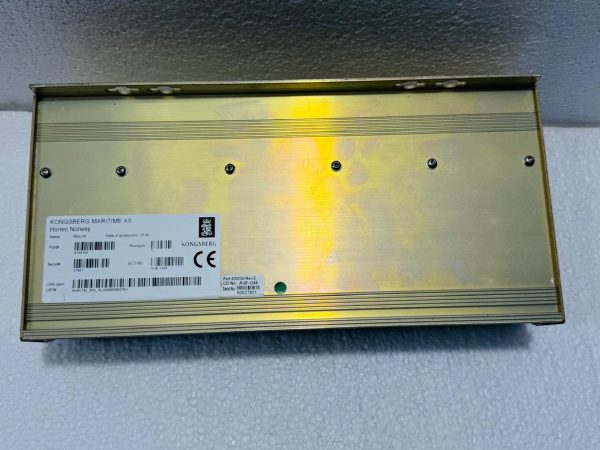

🧾 Revision F & Production Info

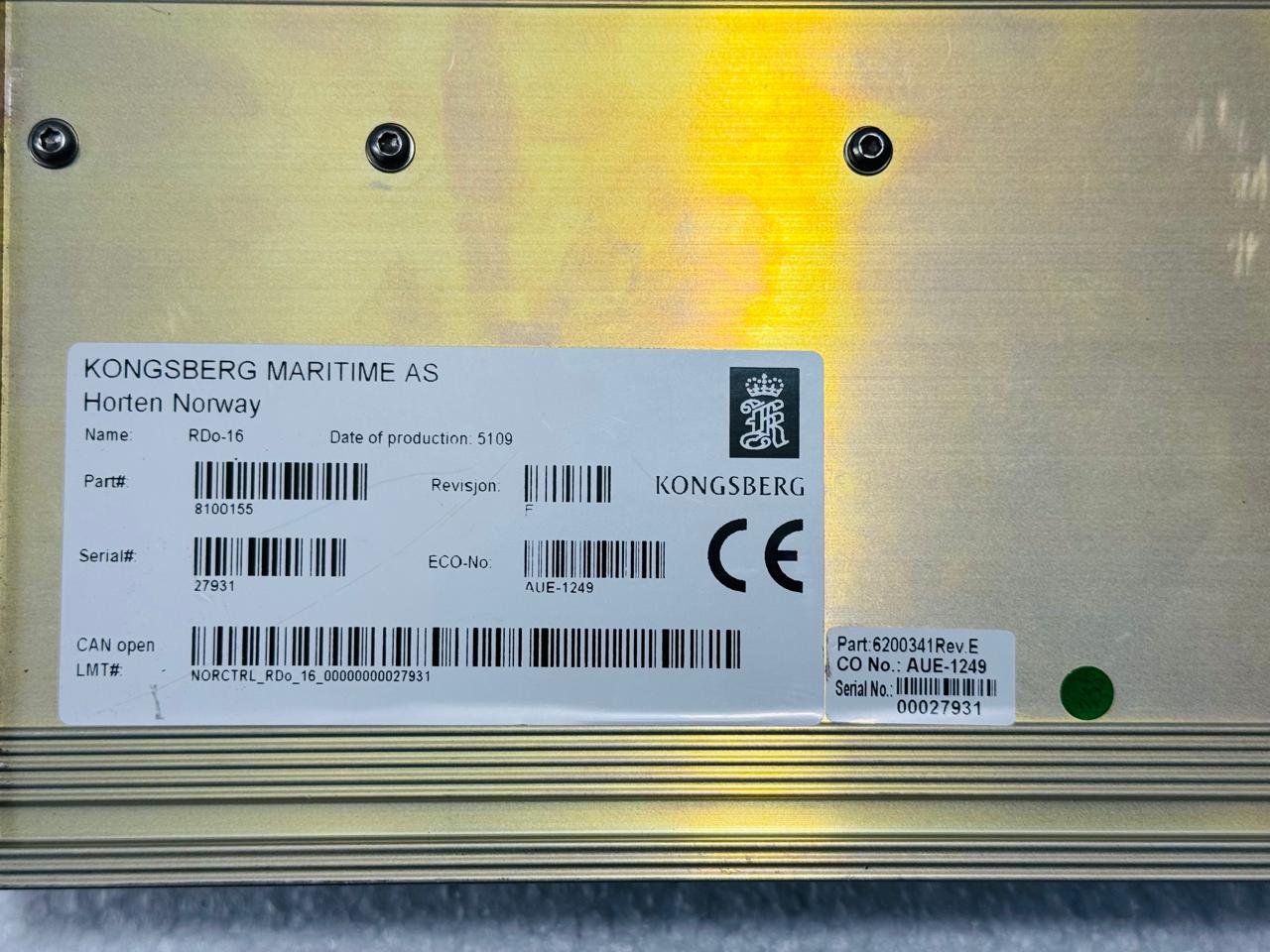

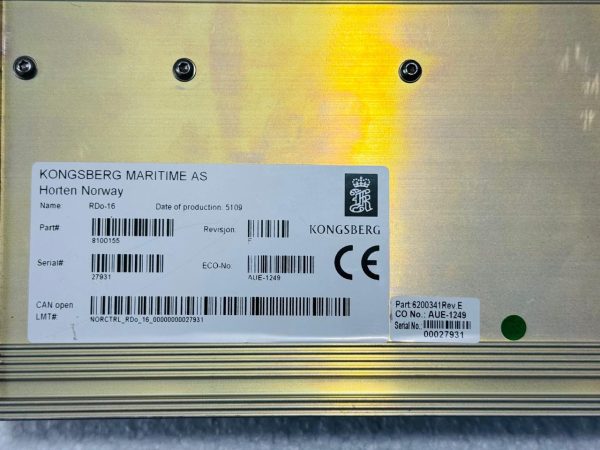

• Part No.: 8100155, Revision: F – indicates Kongsberg's later hardware/software iteration.

• Example production date: “5107” (likely week 7 of 2015 or serial series), serial no. 15201, ECO No. AUE‑1249.
